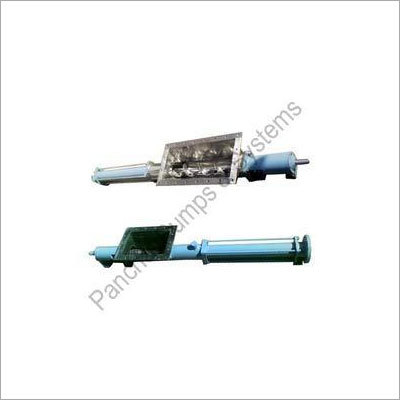

Progressing Cavity Pumps
Product Details:
X
Product Description
PWF Series |
Execution
- Long life closed or open Cardon Joints / Pin Joints.
- Reversible flow direction.
- Suction / delivery standard connections or IDF & option SMS, DIN, JIS Clamp & Ferrule Type.
- Housing in AISI 304, AISI 316 & AISI 316L. The surface is smooth, eliminating product retaining pockets.
- Rotor / Shaft & Rotating Parts in AISI 304, AISI 316 & AISI 316L
- Torsion Free Moulded to Stainless Steel / M.S. Tube Rubber Stator in NCR Food Grade Nitrile, EPDM in white & black colour elastomers.
- Shaft Sealing by Stuffing Box food grade Gland Packed / Mechanical Seal
| Capacity | Up to 50 m/hr. |
| Pressure Stages | 6, 12, 18 & 24 Bar |
| Temperature | Up to 150 C / 302 F |
| Viscosity | Up to 30,000 cst |
| Solid Handling Capability | Up to 12% |
Application
Broken cheese in whey, cocoa chocolate masses, colors & paints, creams, curd, egg liqueur, extract of malt, fruit juices, fruit mashes, grease & oils, honey, hops mash, ice cream, jam, liver mash, mayonnaise, meat & herring salads, milk & condensed milk, musterd mash, pastes, pasty fruit, rasped horse-radish, sausage masses, shampoo, soaps, soft cheese, spinach, tomato pulp, tooth paste, vegetable pulps, yeast paste, yolk and white of eggs, etc.
